Marine Fire Fighting System Fire fighting Safety System

Ship automatic Fire Fighting System with water+ foam fire monitor

 Project: FIFI I

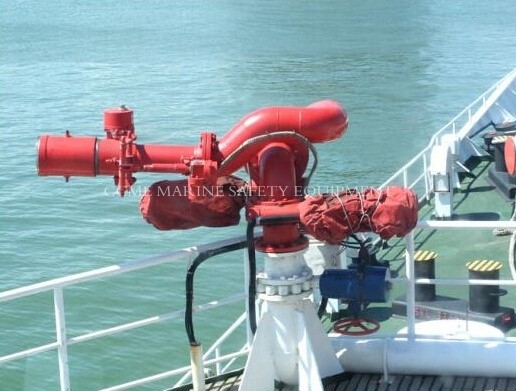

Item 1: Fire monitor

 Fire Monitor :SS200EL

Qty 2sets

Pipe: water pipe and jet nozzle

Medium: water or AFFF

Capacity: Water: 1200m3/h

Operate type: Electrically operated,hand wheels for emergency manual

control with 3 phases motors 440V 60Hz IP56

Throw length: Water:120m approx.(at 11bar)

Water:45m approx.

Swivelling ranges

Rotation: 340°

Elevation: -40°to +75°

(other swivelling ranges on requirement)

Inlet flange: DN200 PN16

Materials:

Body: stainless steel 304

Pipe: stainless steel 304

Sealing: NBR

Painting: red (RAL3000)

Item 2: External fire pump

2-1. Fire pump

Type: horizontal single stage,side inlet top outlet centrifugal pump

Qty 2sets

Model: SSCXB300-250

Medium: seawater

Capacity: 1200 m3/h

Pump head: 140m

Pump speed: 1800 r/min

Power absorbed: 660kw

Pump efficiency: 72%

Dimension of pump inlet: DN300

Dimension of pump outlet: DN250

Material:

Pump shell: Nodular cast iron

Impeller: Ni-Al bronze

Shaft: stainless steel

Shaft sealing: soft sealing

2-2 Diesel engine

Manufacturer: Cummins

T1+CCS

Type: KTA38-M1

Power: 746kw@1800r/min

Including:

Coupling

Common Base

 Item 3: Control system 1shipset

3-1 Monitor Control cabinet

3-2 Pump standby control cabinent

3-3 Wheelhouse control cabinent

3-4 Portable control box(with 15m cable)

 Item 4: Valve

4-1 Electric operated butterfly valve

Qty 2sets

Flange: DN300 PN10

Type: Double flange type

Installation: at pump suction pipe

Leakage grade: zero

Material:

Body: nodular graphite cast iron

Board: Al-bronze

1sets

Shaft: stainless steel

Seal: NBR (can be replaced)

Power source: 440V,3ph 60Hz

4-2 Electric operated butterfly valve

Qty 2sets

Flange: DN250 PN16

Type: lugged type

Installation: at pump discharge pipe

Leakage grade: zero

Material:

Body: nodular graphite cast iron

Board: Al-bronze

Shaft: stainless steel

Seal: NBR (can be replaced)

Power source: 440V,3ph,60Hz

4-3 Electric operated butterfly valve

Qty 2sets

Flange: DN100 PN16

Type: wafer type

Installation: at by-path pipe

Leakage grade: zero

Material:

Body: nodular graphite cast iron

Board: Al-bronze

Shaft: stainless steel

Seal: NBR (can be replaced)

Power source: 440V,3ph,60Hz

4-4 Electric operated butterfly valve
