Double Pipe Fire Fighting Monitor

China Double Pipe Fire Fighting  Monitor supplier

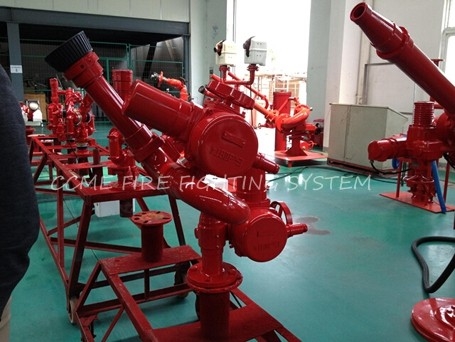

Large Image :  Double Pipe Fire Fighting Monitor

Product Details:

Place of Origin: Chongqing
Brand Name: CCME
Certification: CCS, EC
Model Number: CCM2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 1-3 months
Payment Terms: T/T,L/C
Supply Ability: 10 per month
Contact Now
Detailed Product Description

Double Pipe Monitor (18000L/MIN) for fifi class


Model: 150DHR/F

Descriptions: Produced on requirement

The max capacity:18000L/min

The max pressure: 16bar

Inlet:Flange DN150 PN16

Outlet: Flange connection

Optional inlet flange:DN200/ANSI6”

Rotation range:

Horizontal: 360º infinite

Vertical: +75º~-45º



Body: Stainless steel/Anti-corrosion aluminum alloy/Copper alloy

Sealing: NBR

Pipe:Hard aluminum alloy

Flange: Stainless steel/Anti-corrosion aluminum alloy/Copper alloy

Painting: Red RAL3000

The monitor can be arrested in any horizontal or vertical position.



3500x6500mm Marine Sling Type Floating Pneumatic Rubber with lightweight.
