BV certificate MGCG MGCH type 0.6/1kv EPR insulation marine Cable

China BV certificate MGCG MGCH type 0.6/1kv EPR insulation marine Cable supplier

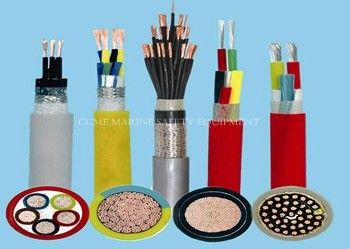

Large Image :  BV certificate MGCG MGCH type 0.6/1kv EPR insulation marine Cable

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: ABS,GL,LR,BV,DNV CCS, RINA KR etc
Model Number: CYDL4

Payment & Shipping Terms:

Minimum Order Quantity: 100Meters
Price: Negotiable
Packaging Details: standard packaging
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 1000 per month
Detailed Product Description
Conductor Material: Copper Or Tinned Copper Jacket: EPR
Insulation: EPR XLPE Pvc Braid: Metal Wire Braid

1 Brief introduction

The company have been approved by the Classification of Ship of China (CCS) in 2001and have been approved

 for rated voltage 1KV and 3KV,6-15KV power cable, rated voltage 150/250V control and instrumentation circuit cable by DEE NORSKE VERITAS

CALSSIFICATION (DNV) in 2004.We have acquired Type Approval Certificate. Our shipboard cable cover 2 series

 altogether over 3000tyoe and dimensions that are extensively used in ship’ power, communication, navigation

 system and modern warship. The products can also use in oil platform, nuclear power, crane, skyscraper and

other electric project.



2 Standards applied

IEC60228  IEC60092-350  IEC60092-351  IEC60092-353  IEC60092-359

IEC60332-1  IEC60332-3-22  IEC60331  IEC60754-2   IEC60134-2



3 Type and Name

 Part one: Shipboard power cable rated voltage 0.6/1kV



Cable type

Description

CJV/DA/SA

XLPE insulated PVC outer sheath shipboard power cable, type DA,SA

CJY/SC

XLPE insulated PO outer sheath Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard power cable, type SC

CJVR/DA/SA

XLPE insulated PVC outer sheath shipboard flexible power cable, type DA,SA

CJYR/SC

XLPE insulated PO outer sheath Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard flexible power cable, type SC

CJV90DA/SA

XLPE insulated PVC inner sheath galvanized steel wire braided shipboard power cable, type DA,SA

CJV80/DA/SA

XLPE insulated PVC inner sheathed tinned copper wire braided shipboard power cable, type DA,SA

CJY90/SC

XLPE insulated PO inner sheathed galvanized steel wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard power cable, type SC

CJY80/SC

XLPE insulated PO inner sheathed tinned copper wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard power cable, type SC

CJVR90/DA/SA

XLPE insulated PVC inner sheathed galvanized steel wire braided shipboard flexible power cable, type DA,SA

CJVR80/DA/SA

XLPE insulated PVC inner sheathed tinned copper wire braided shipboard flexible power cable, type DA,SA

CJYR90/SC

XLPE insulated PO inner sheathed galvanized steel wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard flexible power cable, type SC

CJYR80/SC

XLPE insulated PO inner sheathed tinned copper wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard flexible power cable, type SC

...........................
