Marine Offshore Crane Marine Hydraulic Telescopic Booms

China Marine Offshore Crane Marine Hydraulic Telescopic Booms supplier
Marine Offshore Crane Marine Hydraulic Telescopic Booms supplier Marine Offshore Crane Marine Hydraulic Telescopic Booms supplier Marine Offshore Crane Marine Hydraulic Telescopic Booms supplier Marine Offshore Crane Marine Hydraulic Telescopic Booms supplier Marine Offshore Crane Marine Hydraulic Telescopic Booms supplier

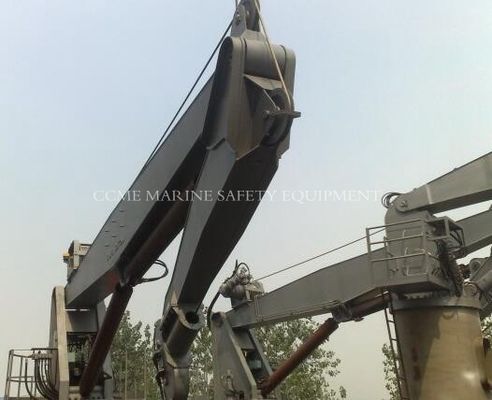

Large Image :  Marine Offshore Crane Marine Hydraulic Telescopic Booms

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: ABS EC GL CCS BV
Model Number: CCM6

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 35 days
Payment Terms: T/T L/C
Supply Ability: 100 PER year
Contact Now
Detailed Product Description
Rated Loading Capacity: 60t Max. Lifting Load: 60t
Max. Lifting Height: 45m Span: 5-50M
Speed: 15 M/min

The max lifting capacity is 60t,and the largest boom length can reach 45m.
The body mounts on the pedestal by slewing bearing.
The prime mover of crane can adopt electric-hydraulic or engine-hydraulic.
Occupy a smaller deck area suitable for small-scale solutions.

Optional equipment
1.Heave compensation
2.Central lubrication
3.Ex-proof protection
4.Constant tension sysytem
5.Remote control
6.PLC intelligent control system
7.Air conditioner for cabin


Basic specification for enquiry:
Max.working load
Max.outreach
Min.outreach
Hoisting height
Hoisting speed
Luffing time
Classification society


Telescopic Cranes Specifications:


Type

SWL

Working rad

Lifting speed

Slewing speed

Luffing time

Lifting height

Slewing angle

MDEE040-TB001

10KN

6-12m

15m/min

1r/min

60s

30m

360º

MDEE040-TB002

15KN

8-14m

15m/min

1r/min

60s

30m

360º

MDEE040-TB003

20KN

5-15m

15m/min

1r/min

60s

30m

360º

MDEE040-TB004

30KN

8-18m

15m/min

0.9r/min

70s

30m

360º

MDEE040-TB005

50KN

12-20m

15m/min

0.75r/min

80s

30m

360º

MDEE040-TB006

80KN

12-20m

15m/min

0.75r/min

100s

30m

360º

MDEE040-TB007

100KN

12-20m

15m/min

0.75r/min

110s

30m

360º

MDEE040-TB008

150KN

12-20m

15m/min

0.6r/min

110s

30m

360º

MDEE040-TB009

200KN

16-25m

15m/min

0.6r/min

120s

35m

270

MDEE040-TB010

250KN

20-30m

15m/min

0.5r/min

120s

40m

270

MDEE040-TB011

300KN

30m

15m/min

0.4r/min

140s

40m

270

MDEE040-TB012

350KN

20-35m

15m/min

0.5r/min

150s

45m

360º

MDEE040-TB013

400KN

20-35m

15m/min

0.5r/min

150s

45m

360º

MDEE040-TB014

450KN

25-40m

15m/min

0.45r/min

160s

50m

360º

MDEE040-TB015

500KN

25-40m

15m/min

0.45r/min

170s

50m

360º



3500x6500mm Marine Sling Type Floating Pneumatic Rubber with lightweight.
