Marine Vertical Electric Hydraulic Boat Capstan For Vessel Mooring

China Marine Vertical Electric Hydraulic  Boat Capstan For Vessel Mooring supplier
Marine Vertical Electric Hydraulic  Boat Capstan For Vessel Mooring supplier Marine Vertical Electric Hydraulic  Boat Capstan For Vessel Mooring supplier Marine Vertical Electric Hydraulic  Boat Capstan For Vessel Mooring supplier Marine Vertical Electric Hydraulic  Boat Capstan For Vessel Mooring supplier Marine Vertical Electric Hydraulic  Boat Capstan For Vessel Mooring supplier

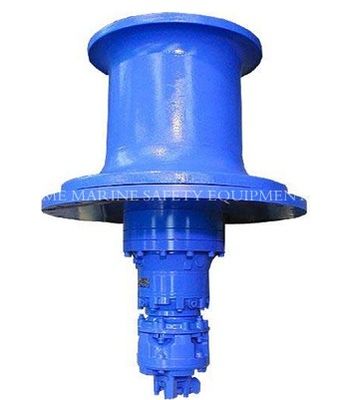

Large Image :  Marine Vertical Electric Hydraulic Boat Capstan For Vessel Mooring

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: ABS EC GL CCS BV
Model Number: CCM9

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15 days
Payment Terms: T/T L/C
Supply Ability: 100 PER month
Contact Now
Detailed Product Description

Marine Vertical Electric Boat Capstan  Thru-deck Model



Main performance parameters





    Electric capstan      (TH-EC)

  Rated load          (Kn)    Rated load            (T) Warping speed (m/min)  Power of motor                      (Kw)
          CM-EC5                 5            0.5            ≥12 3/1.2
          CM-EC10                10              1            ≥12           4.3/1.7
          CM-EC15                15            1.5            ≥12                      8.5/3.5
         CM-EC20                20             2            ≥12           11/11/7.5
          CM-EC30                30             3            ≥12           16/16/11
         CM-EC30-50          30/40/50          3/4/5            ≥12           22/22/16
         CM-EC50               50             5            ≥12 22/22/16
        CM-EC70               70             7            ≥12 30/30/22
        CM-EC100              100            10            ≥12 45/45/30
          CM-EC120              120            12            ≥12 60/60/45
         CM-EC150              150            15            ≥12 60/60/45

The above technical parameters and dimensions are not fixed, they can be designed specially with customer requirements.
