Dredger PE Pipe Use HDPE MDPE Floater

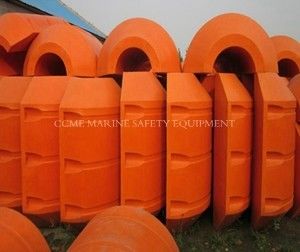

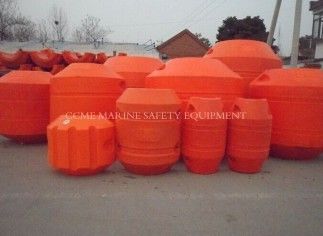

Large Image : Dredger PE Pipe Use HDPE MDPE Floater

Product Details:

Place of Origin:	Jiangshu
Brand Name:	CCME
Certification:	ABS EC BV GL KR etc
Model Number:	CCM7

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	negotiable
Packaging Details:	standard package
Delivery Time:	15 days
Payment Terms:	T/T L/C
Supply Ability:	10000 per month

Contact Now

Detailed Product Description

Length:	0.5m-3m	Thickness:	6mm-8mm
Standard:	ISO9001,2008	Usage:	Match With The Dredging Pipe

Properties for Pipe Float:
1. Fine flexibility,excellent impact resistance,particularly suitable for constructions in open sea.
2. Light weight,Molded-in bolt holes for easy installation,lower construction costs .
3. Higher corrosive resistance,longer working life,3 times longer than steel pipe floats.
4. Lower costs,the cost performance is better than steel pipe floats.
5. The pipe floats under the size of O.D 4m * L4m can be available.
6. Clamp connection of pipe floats compresses the pipeline preventing slippage.
7. Tapered ends on the outside of the Pipe Floats decrease water and wind resistance.
8. Tapered ends on the inside of the Pipe Floats allow the cable,hose,or pipeline to move freely.
Specification:

Pipe I.D mm	Pipe thickness mm	I.D of float mm	O.D of float mm	Length of float mm	Thickness mm	Net buoyance kg	Note
350	6	375	1000	1000	6.5	1100	Two pieces per unit
414	8	430	1200	1200	6.5	2200	Two pieces per unit
450	8	480	1300	1300	7	2300	Two pieces per unit
500	8	530	1300	1500	7	2600	Two pieces per unit
550	10	580	1400	1600	8.5	3200	Two pieces per unit
600	10	630	1450	1700	9	3800	Two pieces per unit
650	10	680	1550	1800	9	4020	Two pieces per unit
700	12	730	1530	1940	10	4300	Two pieces per unit
750	12	780	1700	1900	10	5400	Two pieces per unit
800	15	830	1800	2000	12	6100	Two pieces per unit
850	15	880	2000	2500	14	9200	Two pieces per unit
900	15	930	2100	2500	14	11000	Two pieces per unit
900	18	940	2100	2500	14	12000	Two pieces per
