Large Image :  Marine Boat Salvage Sausages Ship Repair Air Bag Floating Airbag

Product Details:

Place of Origin: Jiangshu
Brand Name: CCME
Certification: ABS EC BV GL KR RINA DNV etc
Model Number: CCM8

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: standard package
Delivery Time: 15 days
Payment Terms: T/T L/C
Supply Ability: 10000 per month
Contact Now
Detailed Product Description
Diameter: 0.8-6m Length: 5-25m
Material: Natural Rubber Application: Ship Luanching And Landing, Salvage, Lifting



ship air bag:

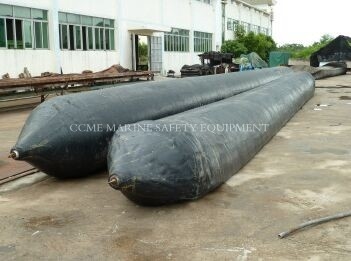

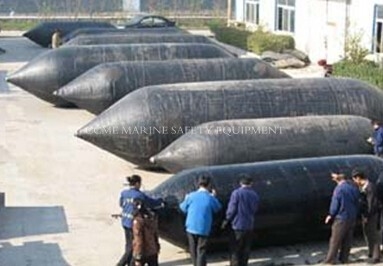

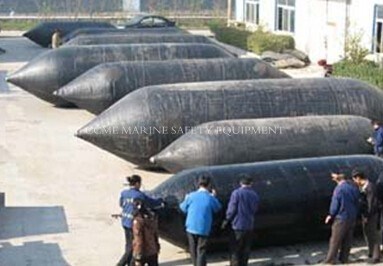

 The structure of Nanhai No. 1 gas-filling rubber airbag is shown in the picture. It consists of a bag body and an iron-end component. The bag body is manufactured by vulcanizing the preliminary shaped airbag made of base rubber and reinforced fiber material. The material of the iron- end component is metal, and it is connected to the bag body firmly.


Application

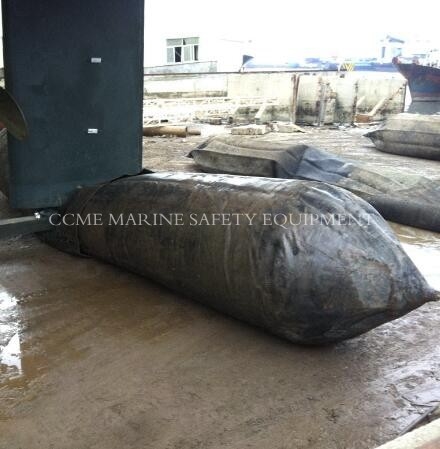

1. Hoisting and moving airbags: They can be widely used for moving various large prefabricated reinforced-concrete products (such as caisson, box culvert, and bridge), oil drilling equipment and integrated building, etc.?

2. Floating and filling airbags: The corresponding buoyancy can be offered on the clients’ request for wreck salvage and underwater installation operation. Filling and floating gasbags can be flexibly used in the projects of wreck salvage, pontoon bridge installation, dock building, underwater transmission pipeline installation, etc. in many ways.

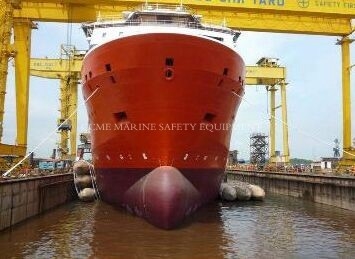

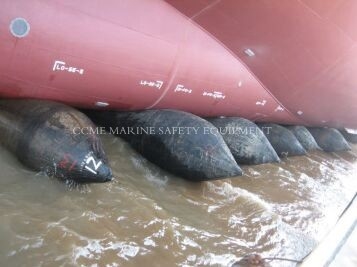

3. Ship landing and launching airbag: It is widely used for landing and launching the large-size, medium-size and small size ships, with the advantages of labor-saving, time-saving and capital-saving.

4. Mandrel airbag: It can substitute the wooden or steel mandrel used for pouring the hollow of large reinforced concrete structure.

5. Container airbag: It can be used as the gas or liquid storage and transport container.

Specifications Air-bags for Marine Use
Category
Airbag Diameter D
(m)
Operating Pressure
(Mpa)
Test Pressure
(Mpa)
Bearing Capacity Each Meter of Airbag(kn/m)
Operating Depth
0.5D
Operating Depth
0.4D
Operating Depth
0.3D
Operating Depth
0.2D

Medium Pressure Airbag

0.3 0.340 0.408 80 96 112 128
0.6 0.167 0.200 79 94 110 126
0.8 0.125 0.150 79 94 110 126
1 0.100 0.120 79 94 110 126
1.2 0.084 0.101 79 95 111 127
1.5 0.067 0.080 79 95 111 126
1.8 0.056 0.067 79 95 111 127
2 0.050 0.060 79 94 110 126
2.5 0.040 0.048 79 94 110 126
3 0.033 0.040 78 93 109 124

High Pressure Airbag

0.6 0.334 0.401 157 189 220 252
0.8 0.250 0.300 157 188 220 251
1 0.200 0.240 157 188 220 251
1.2 0.167 0.200 157 189 220 252
1.5 0.133 0.160 157 188 219 251
1.8 0.111 0.133 157 188 220 251
2 0.100 0.120 157 188 220 251
2.5 0.080 0.096 157 188 220 251
3 0.067 0.080 158 189 220 253

Ultra High Pressure Airbag
Class I

0.6 0.500 0.650 236 283 330
0.8 0.375 0.488 236 283 330
1 0.300 0.390 236 283 330
1.2 0.250 0.325 236 283 330
1.5 0.200 0.260 236 283 330
1.8 0.167 0.217 236 283 331
2 0.150 0.195 236 283 330
2.5 0.120 0.156 236 283 330
Ultra High Pressure Airbag
Class II
0.6 1.000 1.300 471 565 660
0.8 0.750 0.975 471 565 660
1 0.600 0.780 471 565 660
1.2 0.500 0.650 471 565 660
1.5 0.400 0.520 471 565 660
1.8 0.333 0.433 471 565 659
2 0.300 0.390 471 565 660
2.5 0.240 0.312 471 565 660









3500x6500mm Marine Sling Type Floating Pneumatic Rubber with lightweight.
