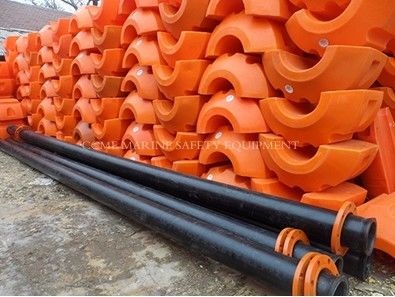

Plastic Floater For Various Sand Dredger Pipe Line

Large Image : Plastic Floater For Various Sand Dredger Pipe Line

Product Details:

Place of Origin:	Jiangshu
Brand Name:	CCME
Certification:	ABS EC BV GL KR etc
Model Number:	CCM6

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	standard package
Delivery Time:	15 days
Payment Terms:	T/T L/C
Supply Ability:	10000 per month

Contact Now

Detailed Product Description

Floater Inner Diameter:	60 - 940mm	Net Buoyancy:	80-8180kg
Material:	MDPE	Application:	Mining Project, Dredging, Oil Gas Transportation

Main Features of MDPE Floater:
1. Good flexibility, excellent impact resistance, particularly suitable for constructions in open sea;
2. Easy to install and handle, lower costs for moving;
3. Higher corrosive resistance, longer working life, 3 times longer than steel floaters;
4. Lower costs, the cost performance is better than steel floaters.

1. 2 pieces of floaters form 1 set, 2 sets of floaters form 1 pair. 1 pair of floaters could float 6 meter long steel dredging pipe and 1.5m long rubber hose.
2. The floaters under the size of O.D4m*L4m are all available.

Specification table of Pipe Floater

PIPE OD(mm)	FLOATER ID(mm)	FLOATER OD(mm)	FLOATER LENGTH(mm)	FLOATER THICKNESS(mm)	NET BUOYANCE(kg)	FLOATER WEIGHT(kg)
50	60	300	500	7	80	10
159	220	500	800	7	200	16
205	220	500	800	7	200	16
219	220	500	800	7	200	16
273	300	700	1200	7	420	43
300	300	700	1200	7	420	43
325	375	1100	1100	7	920	72
350	375	1100	1100	7	920	72
400	414	1100	1200	8	1020	76
426	430	1200	1200	8	1200	93
450	480	1300	1300	8	1500	116
500	580	1400	1500	9	2219	170
536	580	1400	1500	9	2219	170
600	630	1400	1700	11	2400	182
630	630	1400	1700	11	2400	182
650	680	1480	1800	11.5	2930	210
700	730	1600	1900	12	3593	230
750	780	1600	2000	13	3800	245
800	830	1800	2000	14	4800	310
850	880	1800	2200	15	5140	380
900	940	2200	2500	16	8180	420
