Marine Combination Type Sea Water Pressure Tank

China Marine Combination Type Sea Water Pressure Tank supplier
Marine Combination Type Sea Water Pressure Tank supplier Marine Combination Type Sea Water Pressure Tank supplier

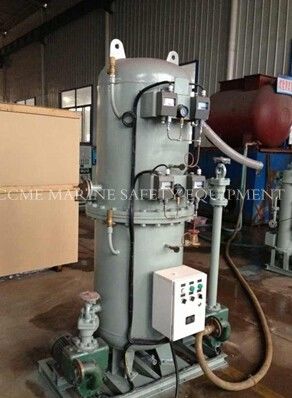

Large Image :  Marine Combination Type Sea Water Pressure Tank

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: CCS BV EC ABS
Model Number: CCM4

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 7 days
Payment Terms: T/T L/C
Supply Ability: 100 PER month
Contact Now
Detailed Product Description

The device uses the pressure water pumped by water pump in tank to compress air so as to keep the water in tank under a proper pressure for the use on board.


Liquid level meter: To show the water level condition in tank.
Pressure gauge: To show the pressure in tank.
Pressure controller: To control the start and stop of water pump. When the pressure in tank is under 0.3Mpa, the water pump will start to feed water into tank until the pressure reaches 0.4Mpa.
Safety valve: When the pressure in tank is more than 0.42Mpa, the safety valve will open to release the pressure in tank.
Charge valve: To charge the compressed air into tank.
Discharging valve: To empty the water in tank when maintaining.





Model ZYG-
0.12 0.2 0.3 0.5 1.0 1.5 2.0
Volume (m 3 ) 0.12 0.2 0.3 0.5 1.0 1.5 2.0
Working pressure(MPa) 0.4
Design pressure(MPa) 0.44
Test pressure(MPa) 0.66
Take-off pressure of safety valve (MPa) 0.42
Working temperature 0~45
Design temperature 50
Water pump Model 1.5CWX-1.5/1.5A 1.5CWX-2/2A 1.5CWX-3/3A
Flow rate(m 3 /h) 3 6.5 10
Pumping head (m) 40 40 40
 Power (kW) 2.2 3 4







3500x6500mm Marine Sling Type Floating Pneumatic Rubber with lightweight.
