Manufacturing Gearbox Marine Gearbox

China Manufacturing Gearbox Marine Gearbox supplier
Manufacturing Gearbox Marine Gearbox supplier Manufacturing Gearbox Marine Gearbox supplier Manufacturing Gearbox Marine Gearbox supplier Manufacturing Gearbox Marine Gearbox supplier

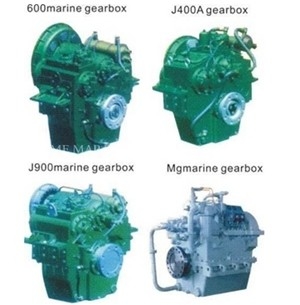

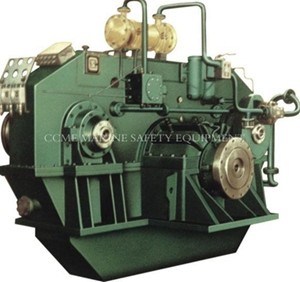

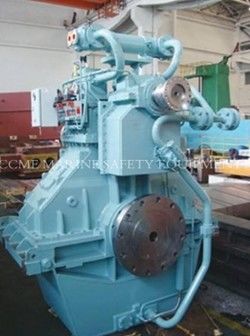

Large Image :  Manufacturing Gearbox Marine Gearbox

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: CCS ABS EC KR DNV etc
Model Number: CCM5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: standard packaging
Delivery Time: 1 month
Payment Terms: T/T L/C
Supply Ability: 10 PER month
Contact Now
Detailed Product Description
Rated Power: 759HP Output Speed: 350-1000RPM
Options: PTO Device Available;Mechanical Or Electric Remote Control



J400 Modle



Housing:SAE 0.1 Flange:14",16",18"
LWH 713×950×890mm Net :820kgs
Nominal coefficient Accurate coefficient Ratio (horsepower/r/m)
2:1 2.042:1 0.45
2.5:1 2.476:1 0.45
3:1 3.000:1 0.45
3.5:1 3.474:1 0.45
4:1 3.491:1 0.38
5:1 4.730:1 0.25



JD400 Modle



Housing:SAE 0.1 Flange:14",16",18"
LWH 801×1010×1066mm Net :1050kgs
Nominal coefficient Accurate coefficient Ratio (horsepower/r/m)
4:1 4.000:1 0.45
4.3:1 4.227:1 0.45
4.5:1 4.476:1 0.45
4.7:1 4.700:1 0.45
5:1 5.000:1 0.45
5.5:1 5.474:1 0.40
6:1 5.890:1 0.38



JT400



Housing:SAE 0.1  Flange:14",16",18"
LWH 832×1052×1160mm Net :1300kgs
Nominal coefficient Accurate coefficient Ratio (horsepower/r/m)
6:1 6.108:1 0.45
6.5:1 6.513:1 0.45
7:1 6.957:1 0.45
7.5:1 7.445:1 0.45
8:1 7.950:1 0.415
8.5:1 8.526:1 0.385
9:1 9:1 0.360
9.5:1 9.474:1 0.333







3500x6500mm Marine Sling Type Floating Pneumatic Rubber with lightweight.
