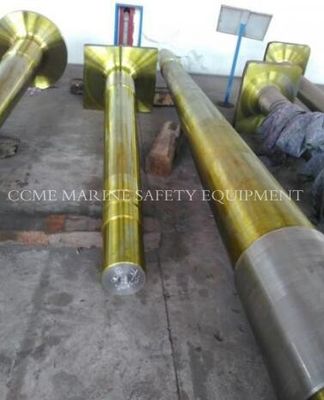

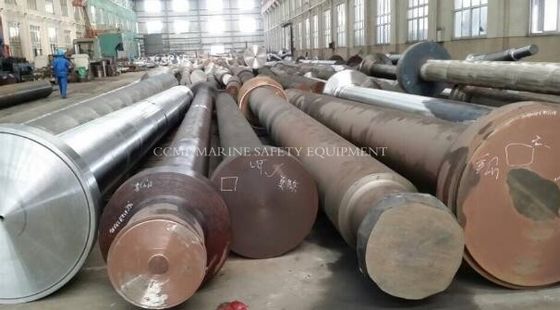

Marine Shaft Forged Marine Rudder Stock

China Marine Shaft Forged Marine Rudder Stock supplier
Marine Shaft Forged Marine Rudder Stock supplier Marine Shaft Forged Marine Rudder Stock supplier Marine Shaft Forged Marine Rudder Stock supplier Marine Shaft Forged Marine Rudder Stock supplier Marine Shaft Forged Marine Rudder Stock supplier

Large Image :  Marine Shaft Forged Marine Rudder Stock

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: CCS
Model Number: CCM3

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: standard packaging
Delivery Time: 1 month
Payment Terms: T/T L/C
Supply Ability: 10 PER month
Contact Now
Detailed Product Description

The details of marine propeller shaft as

follows,1.Material:H13,4130,4140,4150,4340,1035,1045,EN9,EN19,EN24,EN31,51200,SUJ2,

100Cr6,K310,34CrNiMo6,36CrNiMo4,

42CrMo4,86CrMoV7, C35E, C40E, C45E, etc.
2.Hardness: HB240-320
3.Ultrasonic Test: Sep 1921-84 - Test Group 3 Class D or ASTM A388 - FBH max 4mm
4.Forging reduction ratio: ≥4
5.Manufacturing process: steel ingot→forging→rough machining→QT→2th rough machining→finishing machining→packing→delivery
6.Quality required: Surface defect and decarburization shall be free. All dimensions are 100% OK.
7.Packing: wooden box or metal pallet for protection against rust and damage.

8.Quality Management Certification: ISO 9001:2008.



Product Name

Specification

Main Materials

marine propeller shaft

Dia.80~ Dia.1500mm

Length≤12000mm

H13,4130,4140,4150,4340,

EN9,EN19,EN24,EN31,etc



If you are concerned about marine propeller shaft, maybe you will be interested in the following products:



Name

Specification

Material

Drive Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc

Eccentric Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc

Reeler Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc

Arbor Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc

Generator Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc

Elongator Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc

Main Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc
